MEILUN Sewing Equipment - Premium Model

Multi-functional Cutting and Sewing Machine

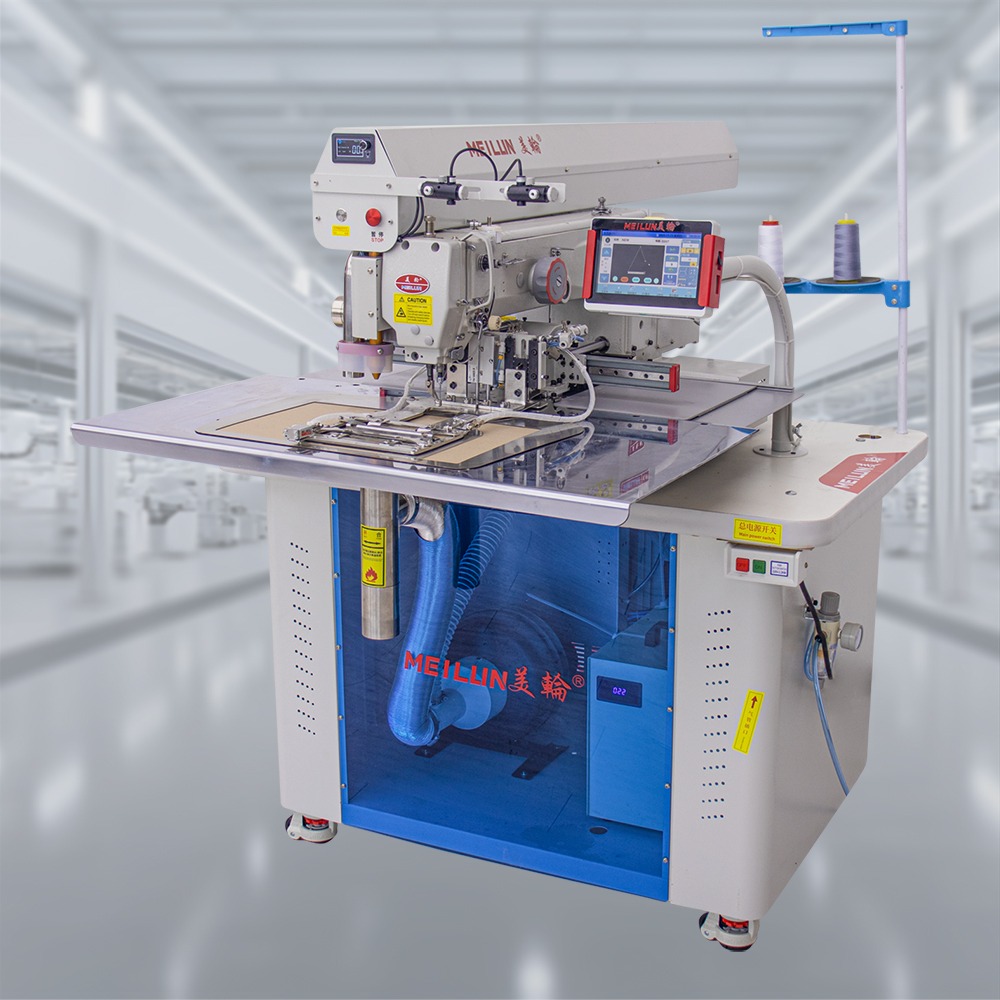

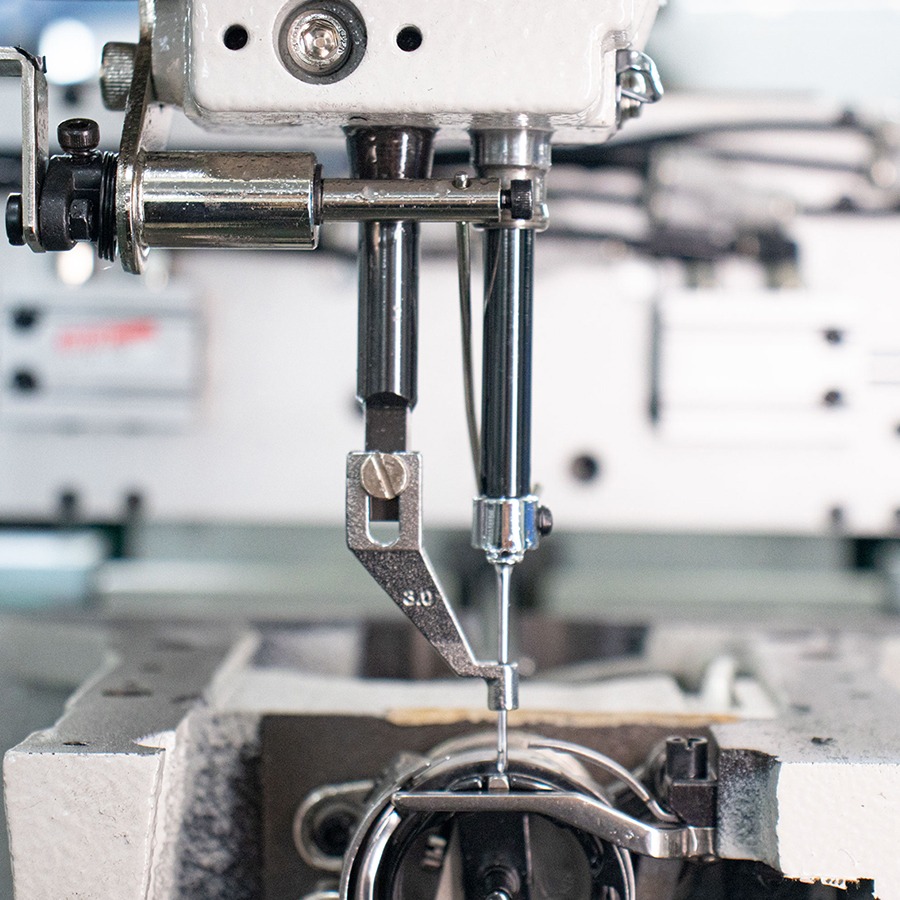

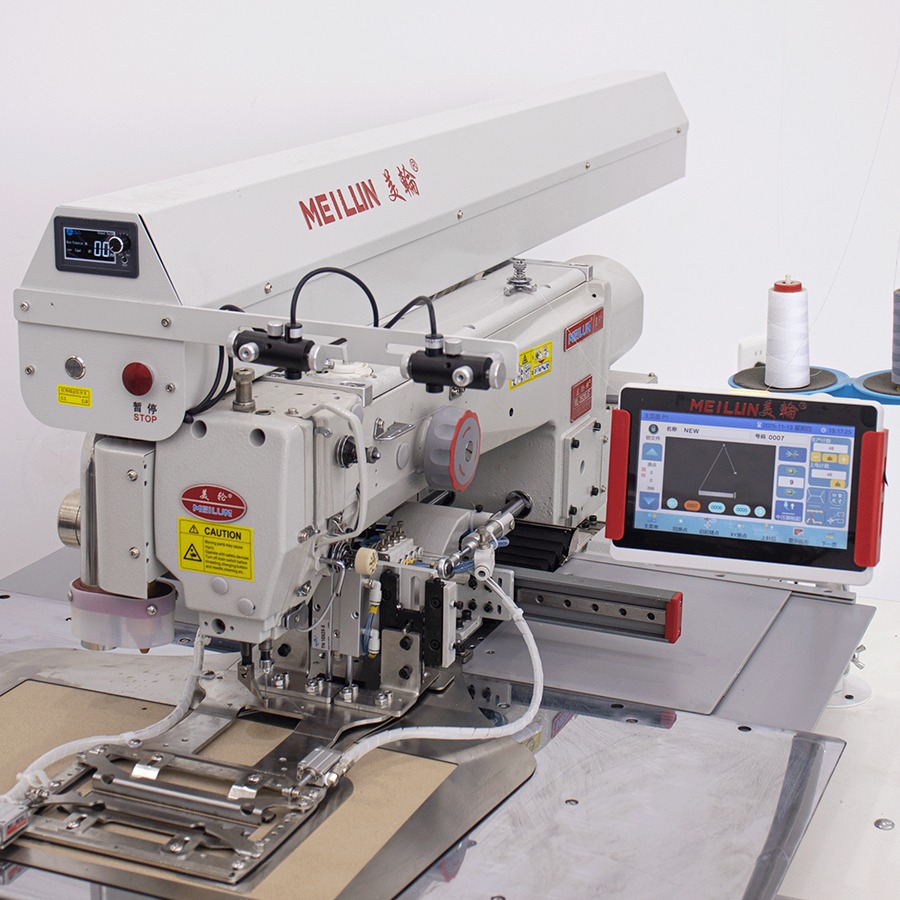

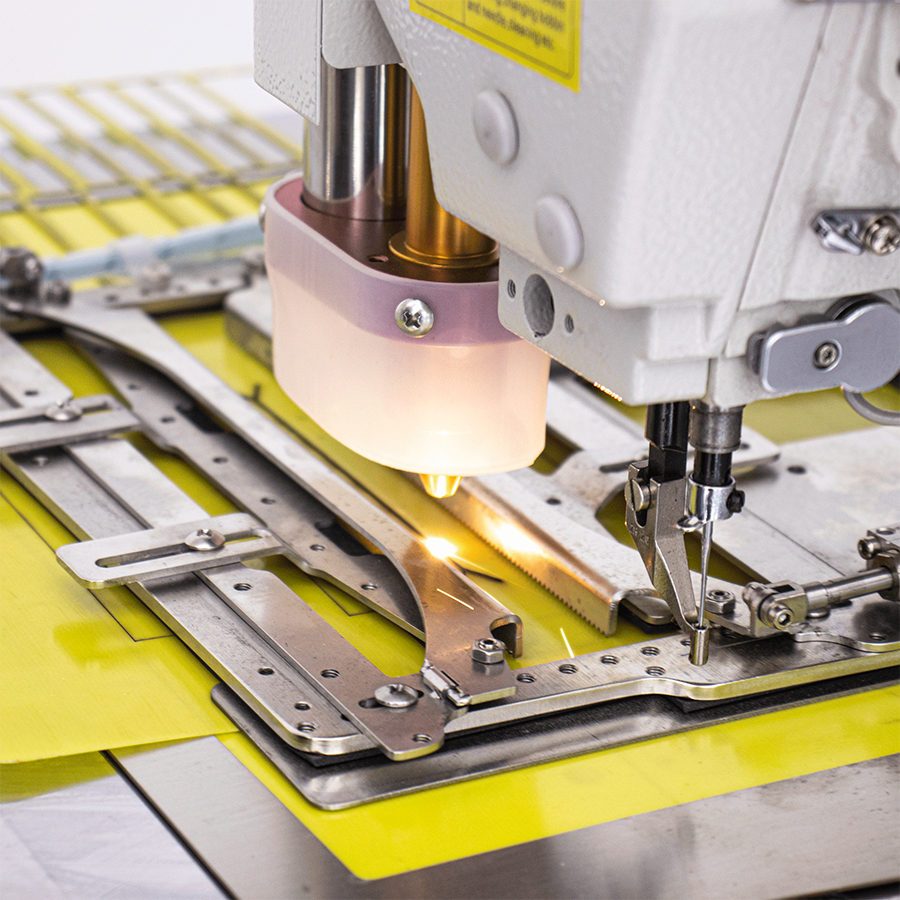

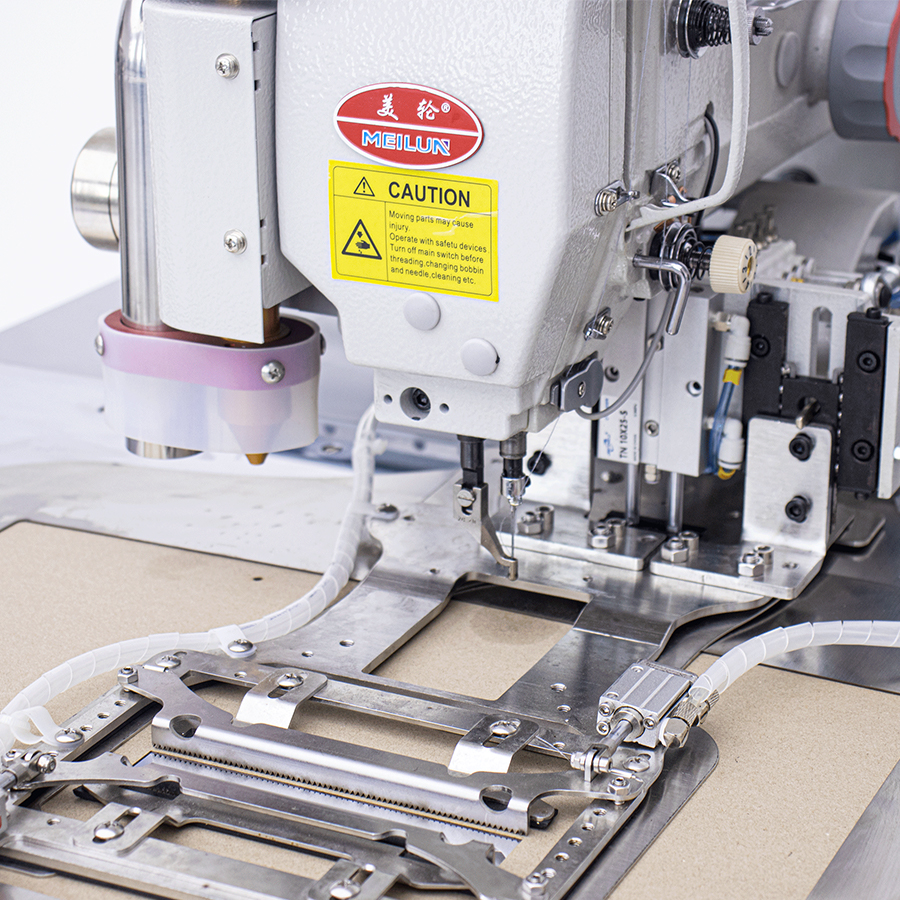

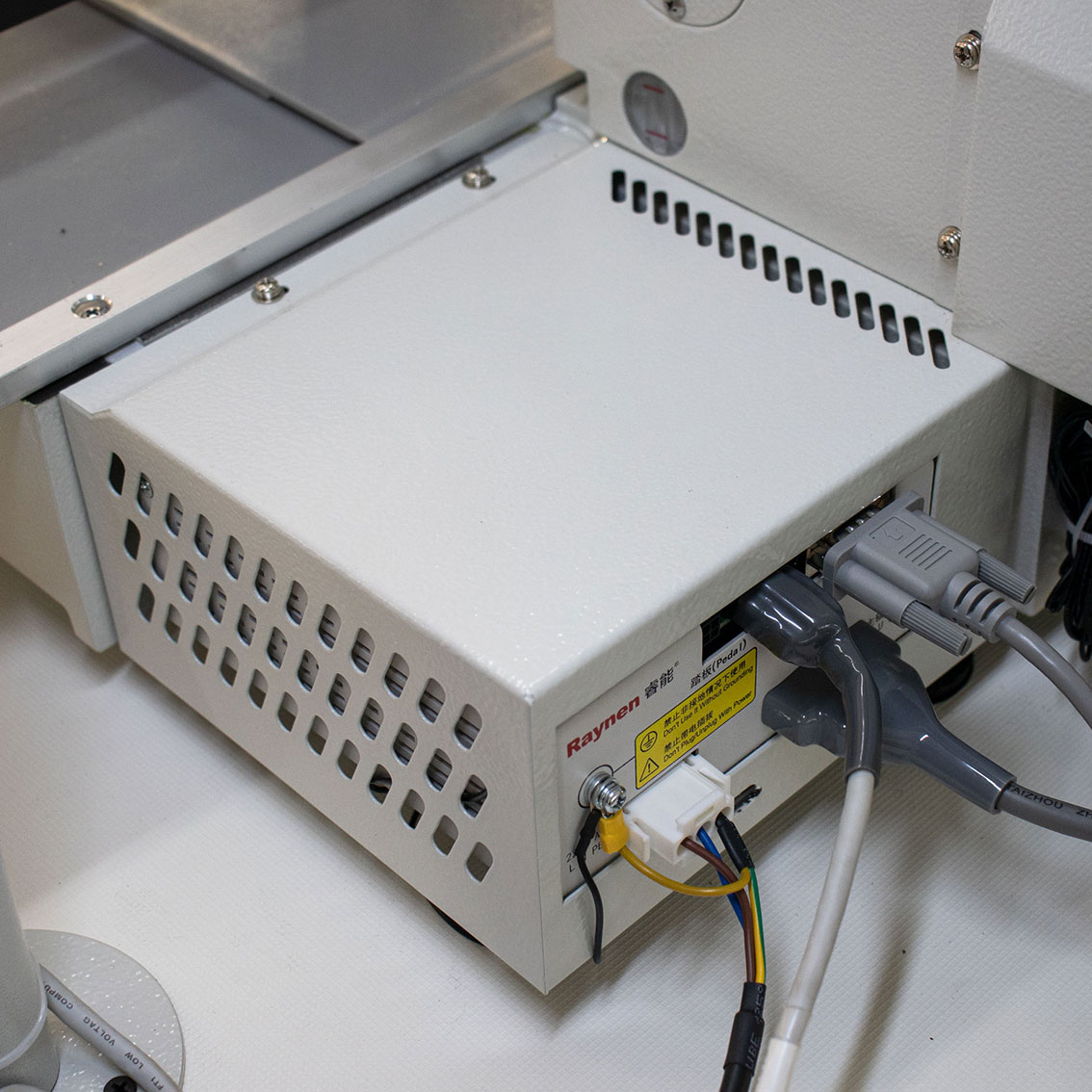

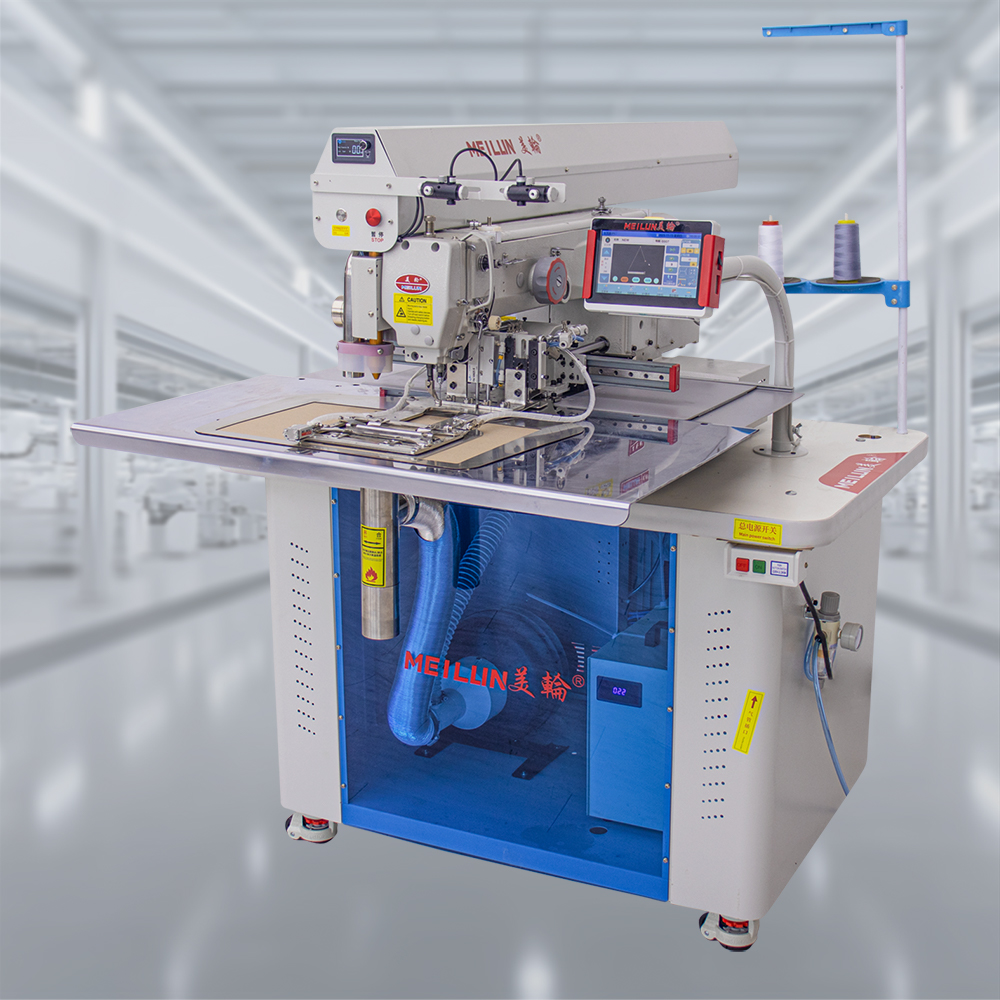

Machine view 1 Machine view 2 Machine view 3 Machine view 4 Machine view 5 Machine view 6

Technical Parameters

BrandMEILUN
ModelML-3520F-RS-FX
VersionDahao / Ruineng Standard & High-end
Power750W
Voltage220V
Shuttle RaceDouble Rotary Hook
Foot OperationPneumatic
Sewing Range250 x 190 mm
Outer Presser Foot Lift32 mm
Needle TypeDP*17
Maximum Speed3000 RPM
Middle Presser Foot Lift20 mm
Stitch Length0.1 - 12.8 mm
Pneumatic Pressure0.25 - 0.4 MPA
Thread Trimming ModePneumatic
Storage MethodOnboard Memory / USB
Control SystemDahao / Reynen / ShangYi
Main Spindle Motor750W Servo Motor
Max Stitch Count20000 Stitches per Pattern
Machine Dimensions1420 x 1000 x 1220 mm
Packing Dimensions1620 x 1170 x 1420 mm
Net Weight230 KG
Gross Weight280 KG

Core Configuration

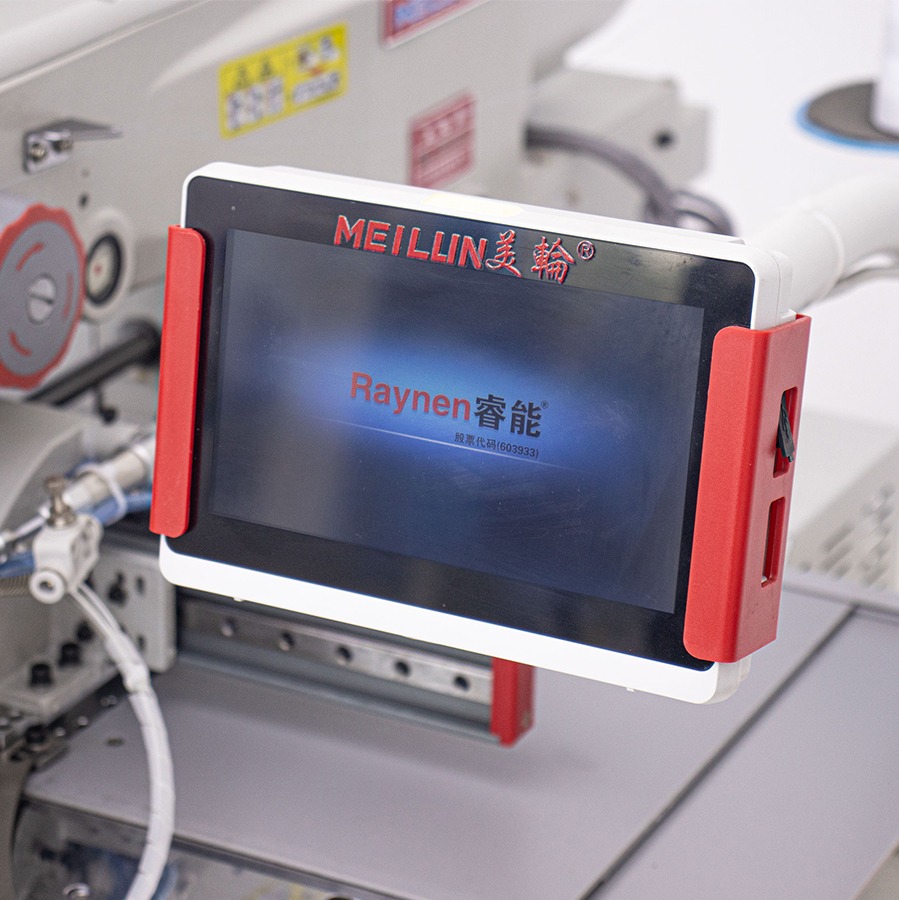

  1. Advanced Electronic Control: Equipped with RuiNeng intelligent electronic control system, supporting fast pattern editing, low operation difficulty, and multi-language support.
  2. Laser Head Options: Lifting & fixed dual-mode laser head optional.
  3. Laser Tube Options: Metal square tube, stainless steel round tube, and customized blue tube.
  4. Electronic Thread Tensioner: Delivers precise stitch tension adjustment with more stable performance than traditional mechanical tensioners.
  5. Thread Breakage Detector: Stops the machine immediately upon breakage to reduce material waste and rework.
  6. Custom Fixtures: More than 30 optimized fixture solutions available for in-depth customized production requirements.

Scope of Application

  • POLO shirt plackets / zipper plackets
  • Down jacket pockets / zipper pockets
  • Double welt pockets
  • Single welt zipper pockets
  • Hole cutting for belts and woven straps

Product Features

  • Low operation threshold: No skilled workers required; new operators can master the machine quickly.
  • Wide fabric compatibility: Compatible with most common garment pocket fabrics on the market, breaking application limitations.
  • High-precision NC cutting: Built-in CNC cutting system to accurately control angles, positions, and sizes, achieving zero-error cutting.
  • Premium Needle Plate: Large stainless steel mirror electroplated needle plate — waterproof, easy to clean, oil-proof, heat-resistant, wear-resistant, and crack-proof.
  • Eco-friendly Dust Removal: Industrial low-power high-suction dust removal system with 360° reverse strong smoke absorption for a clean workshop environment.
  • High Efficiency: Max sewing speed up to 3000rpm, reducing sewing time by 19% (6–10 times more efficient than traditional machines).

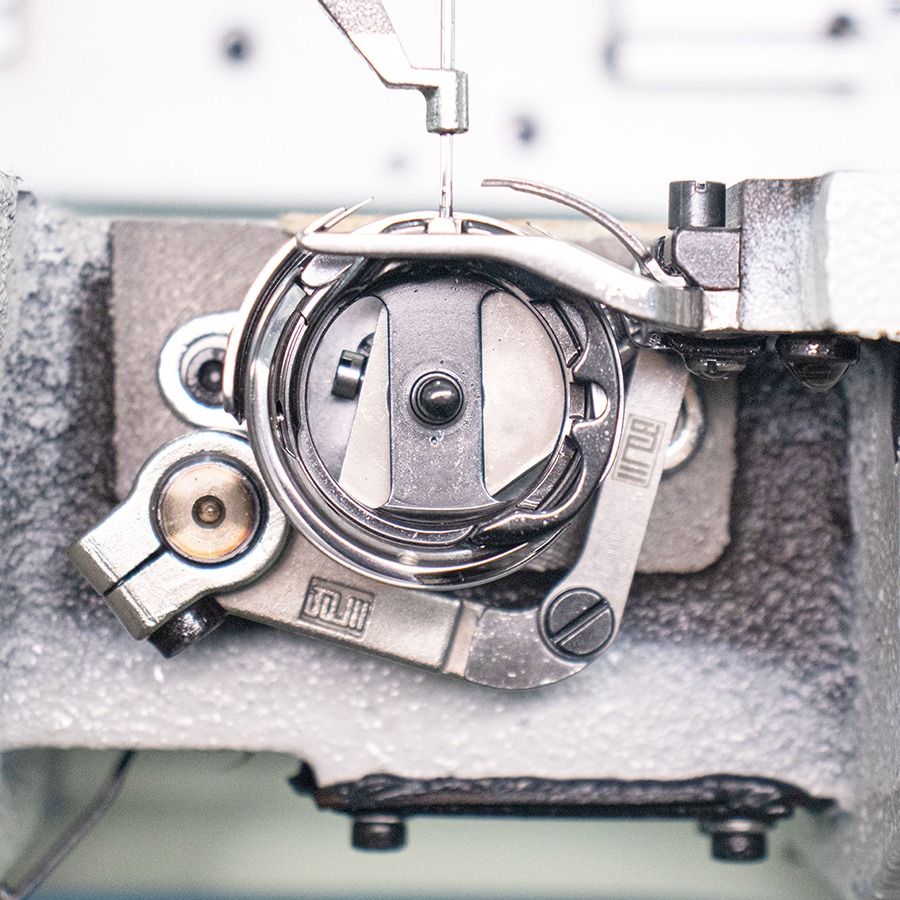

  • Quality Rotary Hook: High-quality Black King rotary hook prevents thread fraying, skipping, and jamming for neat and uniform stitches.
  • Robust Warranty & Screen: 3-year warranty for the electronic control system; oil-proof, waterproof, and drop-resistant capacitive touch screen.
  • Quality Branded Components: Adopts Xianyang Xinguang guide rails, OPT belts, Qiangxin blades, and Baoding core parts for quieter operation and longer service life.
  • Multilingual Support: Simple and efficient operation, effectively saving labor and improving overall productivity.

Product Showcase & Details

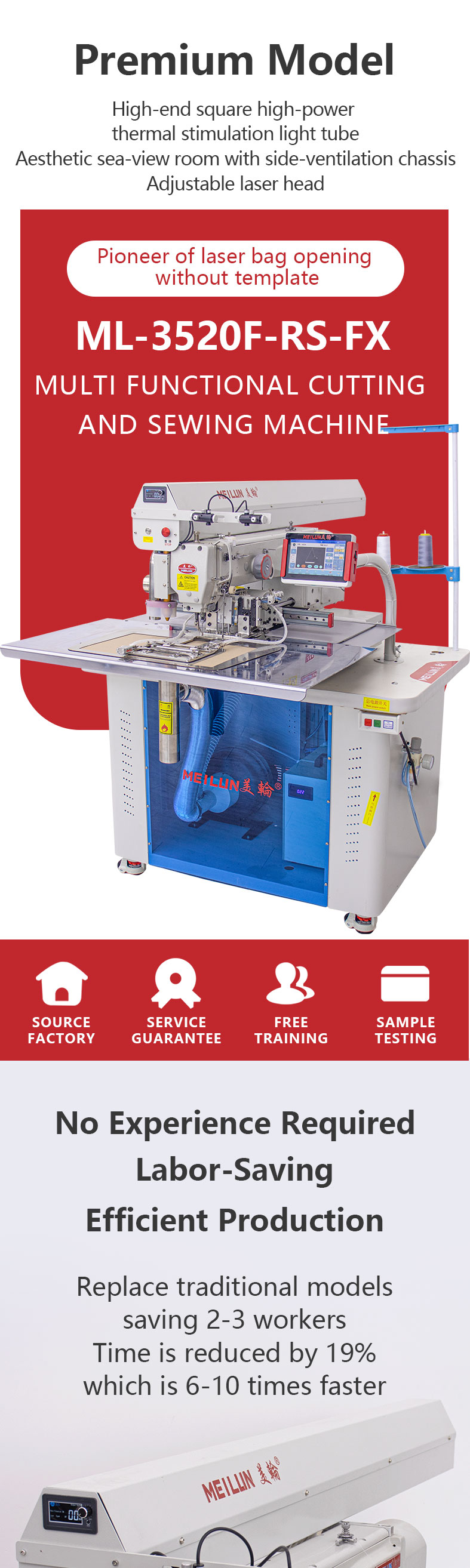

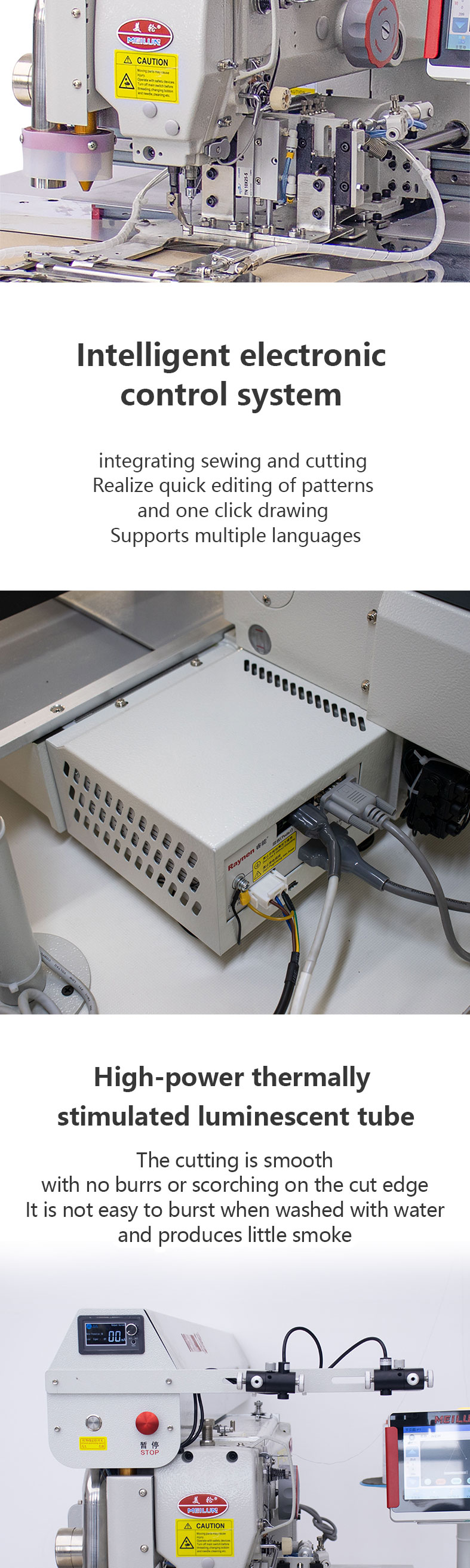

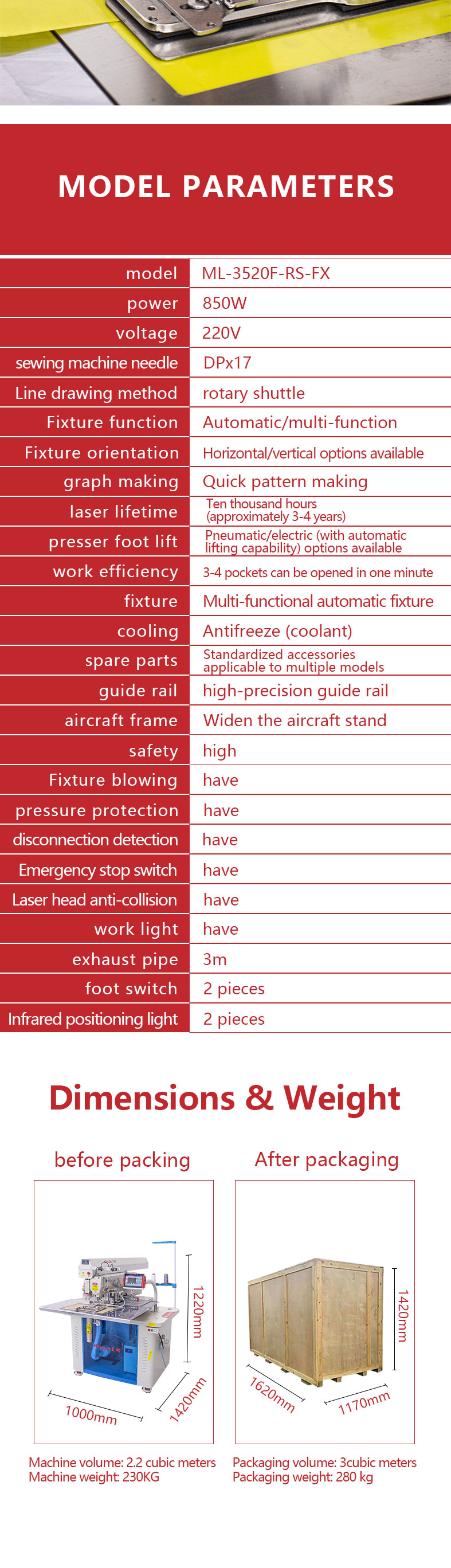

Detail 1 Detail 2 Detail 3 Detail 4 Detail 5

Fashion Trend Pattern Design

The system is equipped with dozens of recognized fashion trend patterns to choose from, and can also be designed according to personal preferences.
Fashion Trend Patterns

Foreign Visit Cooperation

The company's equipment is exported to multiple countries and regions, from flexible small workshops to large manufacturing enterprises, with over 3000 clothing factories maintaining long-term and deep cooperation. Welcome to visit and inspect the factory.
Foreign Visit Cooperation

Production Capacity

As an enterprise with over 20 years of technical experience in sewing machine manufacturing, the company has multiple advanced production lines. Skilled professionals are responsible for production, technical support, and equipment maintenance, ensuring high-quality products and professional service levels. We have sufficient inventory and all the machines we sell can be shipped at any time to ensure that we can meet your urgent needs in a timely manner.
Production Capacity

Transport Capacity

The company is located in the Guangdong Hong Kong Macao Greater Bay Area of the Pearl River Delta, with a superior geographical location, which facilitates logistics transportation and ensures smooth freight processes.
Transport Capacity
Home / Multi functional cutting and sewing machine（Premium Model）
Multi functional cutting and sewing machine（Premium Model）
$2,600.00
